Worn factory speakers are one of the most common audio complaints we see on the W212 Mercedes E-Class. After years of use, the original paper cones dry out, crack, and tear — and the sound turns thin, distorted, and weak. On this 2011 E-Class, the owner wanted clear, full-bodied sound without the cost of a full system overhaul. Our fix was straightforward and effective: replace all four door speakers with the JBL Club 6520, installed with proper polarity, acoustic sealing, and a custom foam baffle to stop sound loss. The result was a dramatic improvement in clarity and depth — for a sensible budget.
The Vehicle: 2011 Mercedes E-Class (W212)
This project is a 2011 Mercedes E-Class from the W212 generation, running the factory COMAND NTG4.5 system with the standard (non-premium) amplifier. The W212 uses 6.5-inch door speakers front and rear, which makes it an ideal candidate for a direct-fit upgrade — no cutting, no fabrication, just the right speaker matched to the right car.
The Problem: Torn Factory Speaker Cones
The factory speakers had failed the way they almost always do on a car this age: the original cones were cracked and torn. Mercedes used paper-based cones in the W212, and after more than a decade of heat and humidity in the Gulf climate, the material dries out and splits. Once a cone tears, the speaker can no longer move air cleanly — so the sound becomes thin, distorted, and lifeless, with almost no real bass. You can see the damage clearly in the photos below: the original cones are split right across the centre.

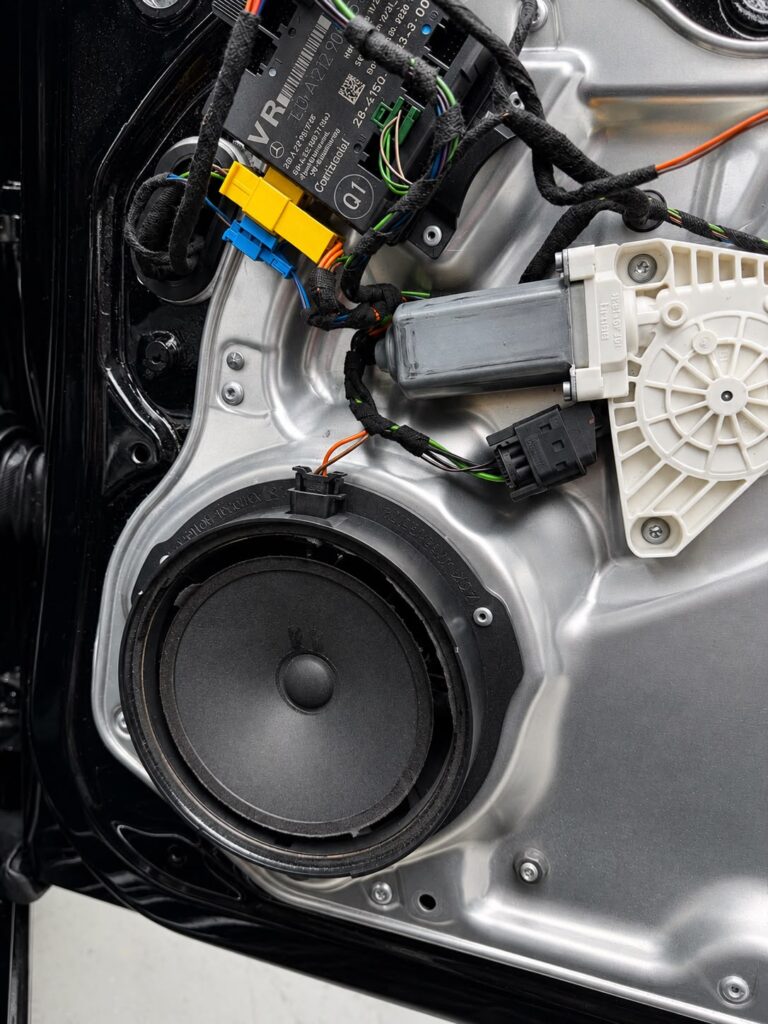

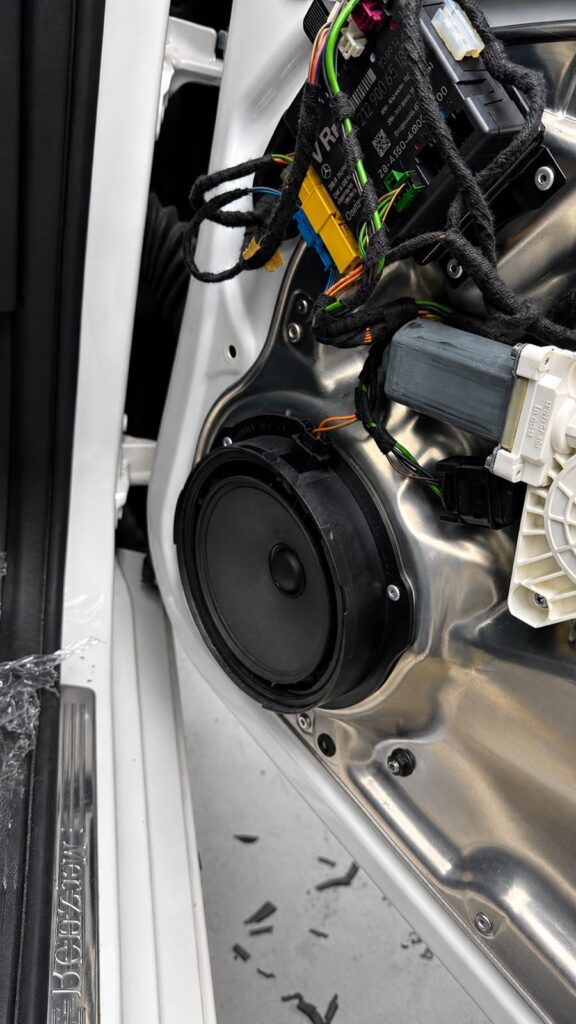

Before: The Original Mercedes Speakers
The Solution: JBL Club 6520 — All Four Doors
We replaced all four door speakers with the JBL Club 6520, a 6.5-inch coaxial that’s one of the best value choices for the W212 Mercedes E-Class. It’s a direct fit, it handles the factory head unit’s power comfortably, and its oversized woofer cone delivers noticeably deeper bass and cleaner highs than the worn originals — all for a sensible budget. For owners who want a real improvement in sound without the cost of a full DSP or amplifier build, this is the sweet spot.
- JBL Club 6520 — Specifications
- Size: 6.5″ (160 mm) coaxial
- Peak Power: 150 W
- RMS Power: 50 W
- Frequency Response: 50 Hz – 20 kHz
- Nominal Impedance: 3 ohm
- Sensitivity: 92 dB
- Features: Plus One oversized woofer cone, PEI balanced dome tweeter

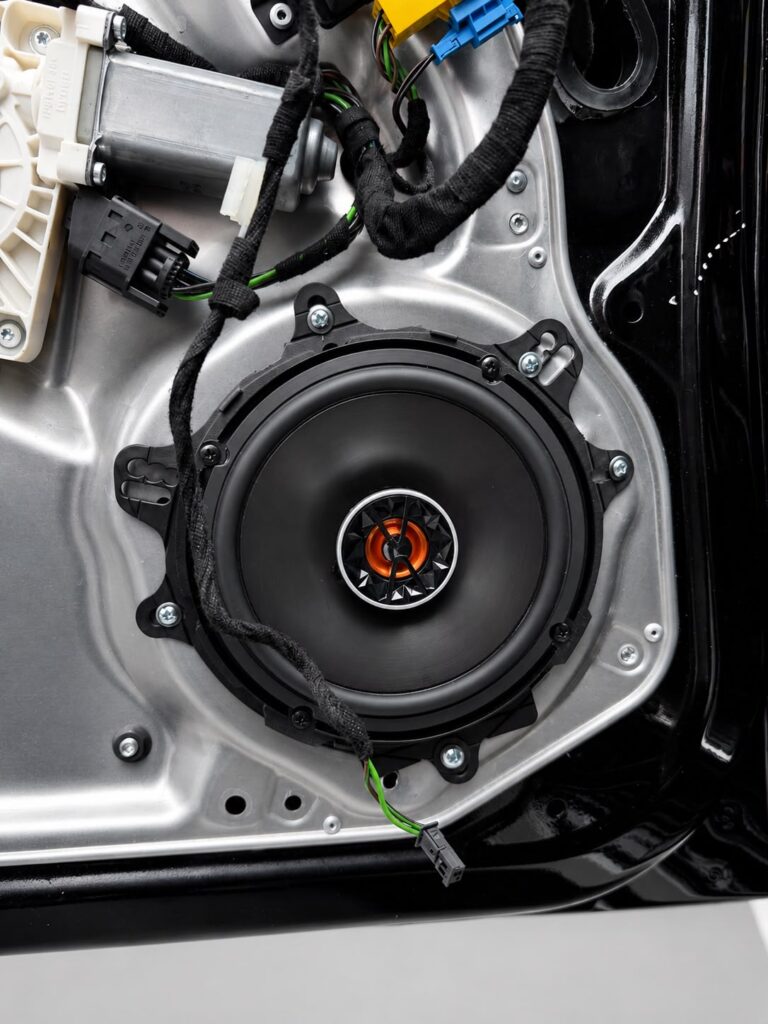

After: JBL Club 6520 Installed
Inside the Process
A speaker swap sounds simple, but the difference between an average result and an excellent one comes down to the details. Three things mattered most on this Mercedes E-Class install:

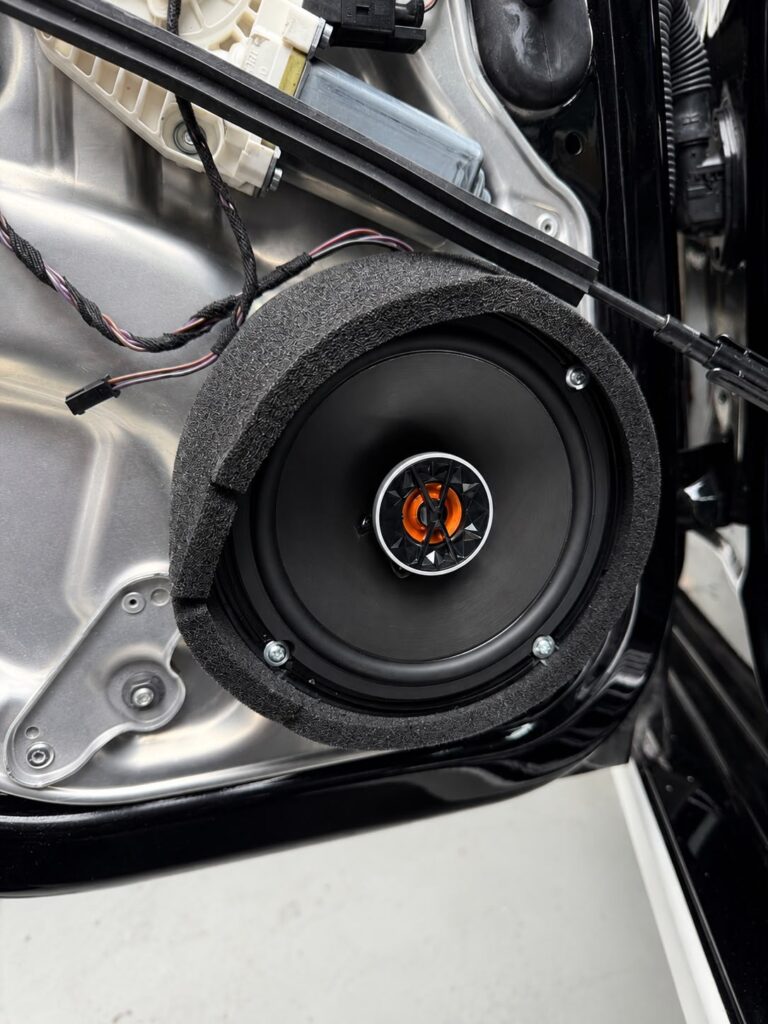

Sealing the Rear Doors with a Custom Foam Baffle
On the rear doors, there was a gap between the new speaker and the door panel. Left as-is, that gap lets sound leak and bounce inside the door cavity instead of reaching the cabin — so you lose volume and clarity. To fix this, we built a custom foam baffle that forms a sealed tunnel between the speaker and the panel. This channels the sound directly into the cabin, giving the passengers fuller, more focused audio with no wasted energy.
Correct Speaker Polarity
With four speakers, getting the wiring polarity right — positive to positive, negative to negative — is critical. If even one speaker is wired out of phase, the speakers fight each other and the bass cancels out. We checked the polarity on every connection so all four drivers move together, exactly as they should.
A Clean, Factory-Quality Fit
Each JBL Club 6520 was mounted on the factory speaker bracket for a secure, rattle-free fit — no loose mounts, no vibration. The result looks and feels like it came from the factory, just with far better sound.
The Result
The transformation was immediate. With all four JBL Club 6520 speakers in place, sealed and correctly wired, the Mercedes E-Class went from thin and distorted to clear, full, and balanced. Here’s what the upgrade delivered:
- Clear, distortion-free sound across the full volume range
- Noticeably deeper, tighter bass from the oversized JBL woofer cones
- Crisp, detailed highs from the PEI dome tweeters
- Even sound across all four doors, front and rear
- A sealed rear-door install with no sound loss
- A clean, factory-quality fit with no rattles or vibration
- A premium audio upgrade achieved for a sensible budget
Why a Quality Install Matters
The JBL Club 6520 is an excellent speaker, but the speaker alone is only half the result. The same components fitted carelessly — loose mounts, an unsealed door, or one channel wired out of phase — will sound mediocre at best. What turns good hardware into great sound is the install: sealing the doors properly, building baffles where they’re needed, getting the polarity right on every driver, and mounting everything tight and rattle-free. That attention to detail is the difference between speakers that simply play and speakers that genuinely transform how your car sounds.
With over two decades of experience upgrading audio systems in everything from daily Mercedes models to ultra-luxury exotics, our team treats every install — whatever the budget — with the same care. The goal is always the same: sound you can hear the difference in, done right the first time.
Upgrade Your Mercedes Sound in Dubai
Tired of thin, distorted sound from worn factory speakers? Whether you drive an E-Class, C-Class, or any other Mercedes, we’ll match the right speakers to your car and install them the right way. Chat with Sharif on WhatsApp for a quick consultation.
Related Service
This Mercedes E-Class project is part of our wider car audio work in Dubai — from simple speaker upgrades like this one to full Focal, Audison, and Match DSP systems on luxury and exotic cars. To see the full range of what we offer, visit our Car Sound System Upgrade service page.
Frequently Asked Questions
What are the best speakers for a Mercedes E-Class W212?
The JBL Club 6520 is one of the best value upgrades for the W212 Mercedes E-Class. It’s a 6.5-inch coaxial that fits the factory door locations directly, runs well off the standard head unit, and delivers far cleaner, fuller sound than the worn paper-cone originals — all for a sensible budget.
Why do Mercedes E-Class factory speakers sound bad after years of use?
The factory speakers use paper-based cones that dry out and crack over time, especially in the heat and humidity of the Gulf climate. Once the cone tears, the speaker can’t move air cleanly, so the sound becomes thin, distorted, and almost bass-free. Replacing the speakers restores clear, full sound.
Do I need to change all four speakers or just the fronts?
For balanced sound, we recommend replacing all four. On this E-Class, all four original cones were worn, and upgrading only the fronts would leave the rear sound thin and mismatched. Changing all four gives even, consistent audio throughout the cabin.
Can I upgrade my Mercedes speakers without adding an amplifier?
Yes. The JBL Club 6520 is designed to run off a factory head unit, so no extra amplifier is required for a strong improvement. A proper install — sealed doors, correct polarity, and tight mounting — is what unlocks the speaker’s full potential without added cost.
Where can I get a Mercedes speaker upgrade in Dubai?
Weiss Auto Concept provides Mercedes speaker and sound system upgrades in Dubai, with over two decades of experience across everyday and luxury vehicles. Message Sharif on WhatsApp to discuss your car and get the right speakers matched and installed.
