Yes, Porsche Macan CarPlay and Android Auto can be activated with no added hardware. At Weiss Auto Concept in Dubai, we activated both on a GCC-spec 2019 Macan S with PCM 5.0 (MH2p). We then flashed the PCM software to unlock true full-screen CarPlay across the entire 10.9-inch display. The job took just over two hours.
Vehicle at a Glance
| Vehicle | Porsche Macan S (95B), built 04/2019, GCC-spec |
| Infotainment | PCM 5.0, MH2p platform, hardware H080 |
| Software before | MH2p_ER_P0416_P9830 (MU 9830) |
| Problem | CarPlay not activated; wired USB CarPlay did not work |
| Result | Full-screen wired Apple CarPlay + Android Auto |
| Hardware added | None |
| Workshop time | About 2 hours |
Why CarPlay Didn’t Work on This 2019 Macan
On the 2019 Macan, Apple CarPlay is a software option. If it was not enabled at the factory, the PCM will not start CarPlay, even with an iPhone connected by USB. Porsche’s own Tequipment retrofit instructions for the Macan (95B) confirm this. The official route is a CarPlay license key (part 95B.044.900.07) coded with the PIWIS Tester 3, with no hardware change.
The owner’s question was simple: can the original CarPlay software be activated without installing any hardware? The answer was yes.
Why Activation Alone Doesn’t Give Full-Screen CarPlay
Standard CarPlay activation on PCM 5.0 shows CarPlay in a window, with a PCM info panel taking up the right side of the display. To make CarPlay fill the full width of the 10.9-inch screen, the PCM software itself must be flashed. The owner wanted full-screen, so we did both: activation and software flash.
What We Did, Step by Step

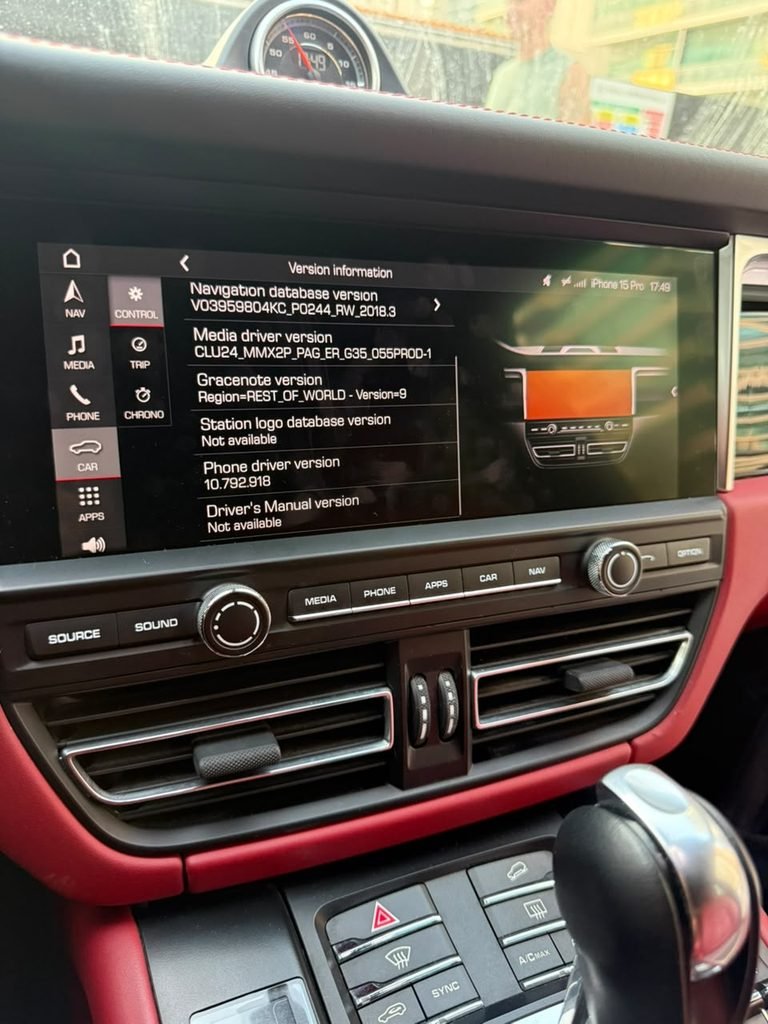

- Read the system data. We recorded the software, hardware and navigation database versions from the PCM Version Information screen.

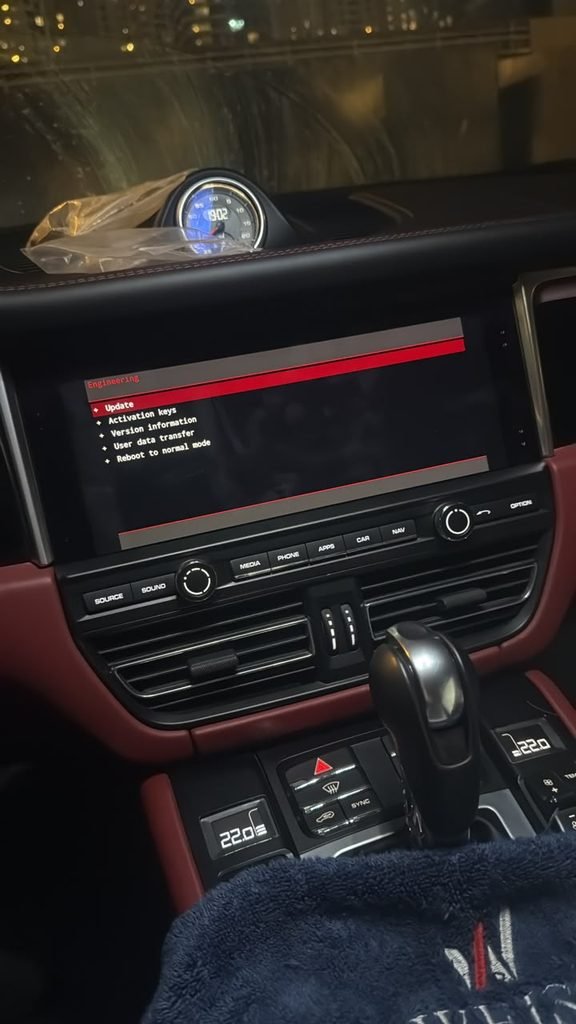

- Entered the PCM Engineering menu. From there we loaded the software release MH2p_ER_P0416_K2874 through the SD card slot in the centre armrest.

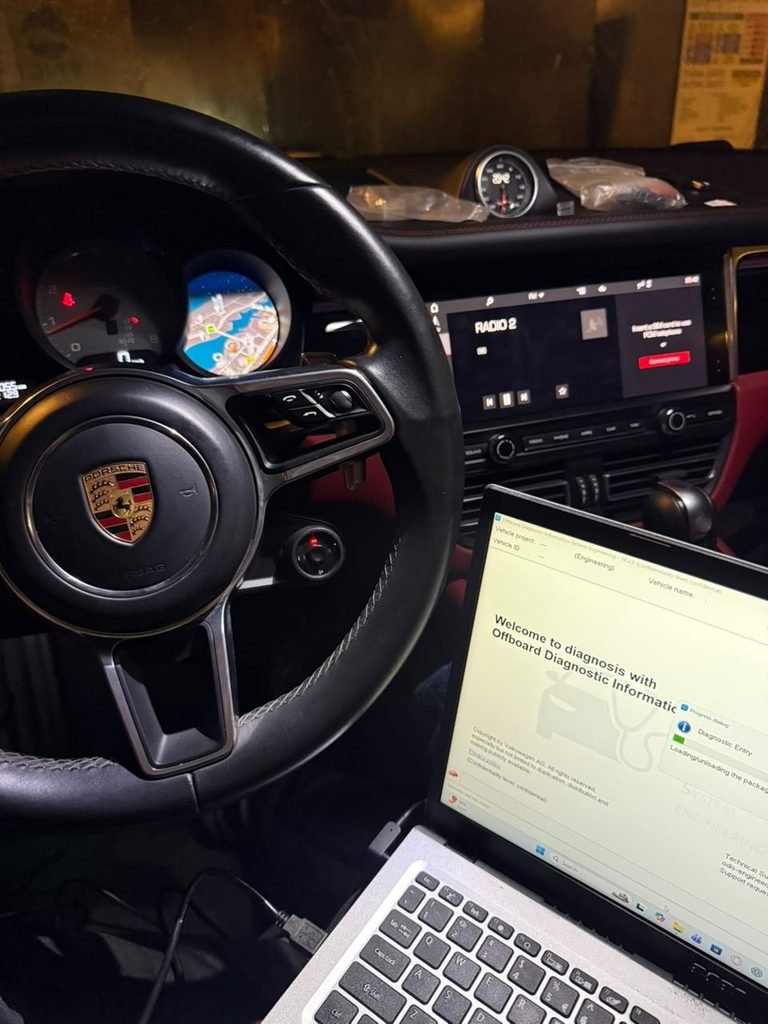

- Flashed the PCM modules, including the MMX2P module.
- Coded the features with dealer-level diagnostic software (ODIS Engineering) to activate Apple CarPlay and Android Auto.

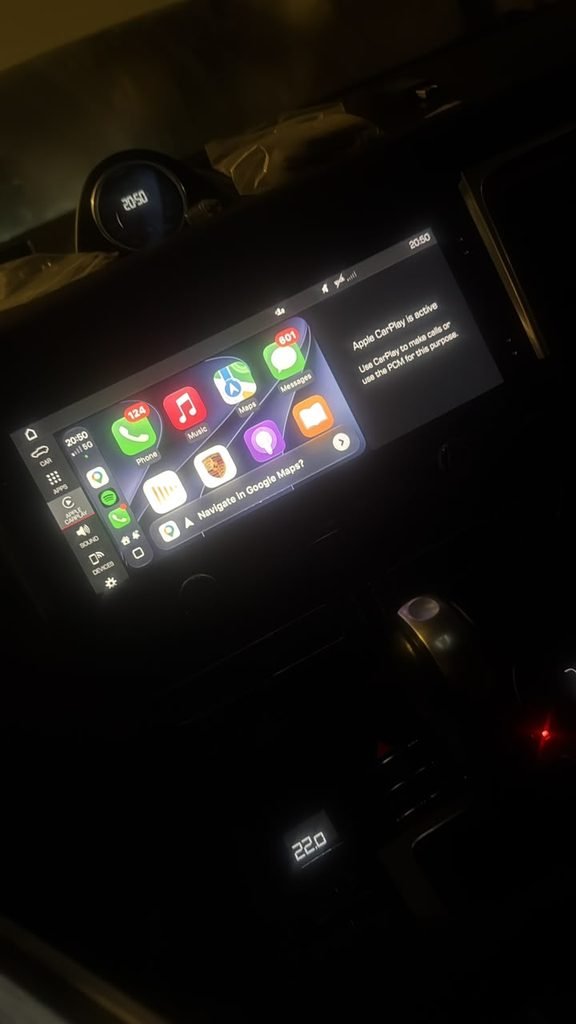

- Rebooted and tested. After activation, CarPlay first appeared in the standard split view. After the final reboot, it ran full-screen.
Protecting the Electronics During the Flash
We kept the engine running for the entire flash to hold a stable voltage. Porsche warns that a voltage drop during control-unit programming can cause irreparable damage. One short coding step had to be done with the ignition on and the engine off. Because it took under ten minutes, no external battery support was needed.

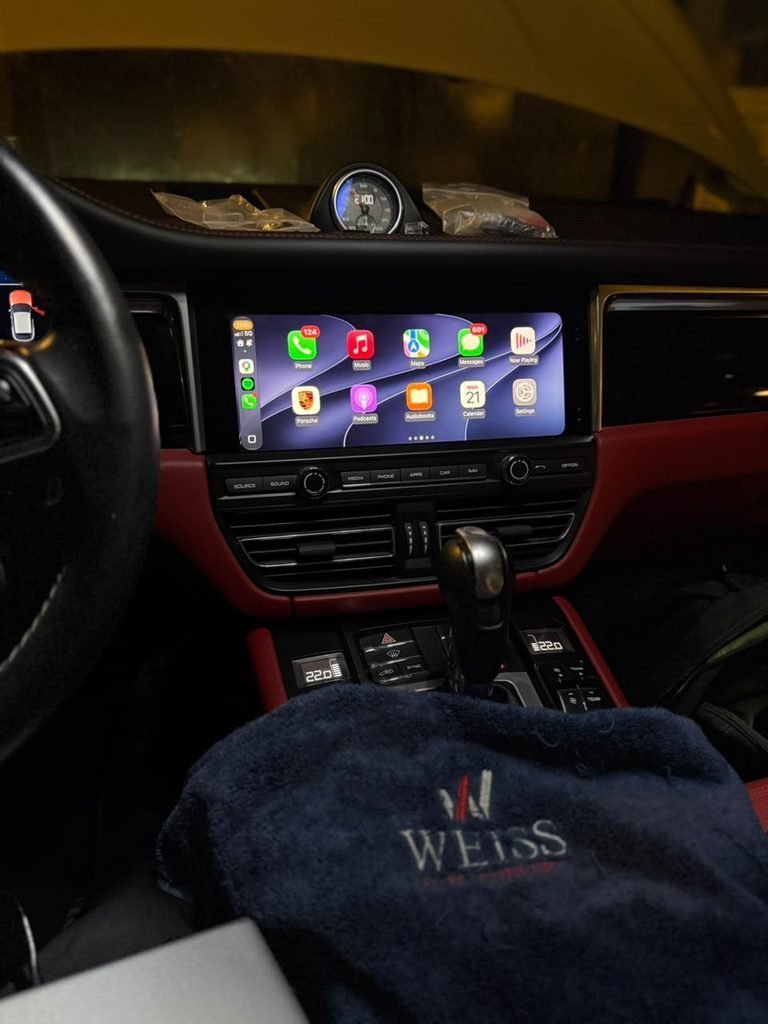

The Result: Full-Screen Porsche Macan CarPlay
- Full-screen wired Apple CarPlay across the whole 10.9-inch PCM display
- Android Auto activated
- Factory Porsche software only, with no aftermarket interface or dongle
- Connection through the USB port in the centre armrest
Wireless CarPlay was not part of this job. On some PCM 5.0 units it can be enabled when the Wi-Fi hardware is present, and we confirm this per vehicle by VIN.
What the Owner Said
Top Job Sharif! Was not easy, but works perfect. All time very friendly! Like new Porsche! Thanks a lot!
Sebastian M., Porsche Macan S owner – Google review
Need CarPlay on another Porsche model? See our Porsche CarPlay Activation & GCC Region Coding service. You can also browse our Apple CarPlay & Android Auto services or a similar Volkswagen Group project on the Audi Q7.
Frequently Asked Questions
Can Apple CarPlay be activated on a 2019 Porsche Macan without hardware?
Yes. On the 2019 Macan with PCM 5.0 (MH2p), CarPlay is a software feature activated by coding, with no extra hardware. Weiss Auto Concept activates it in Dubai using dealer-level tools.
Why is my Porsche CarPlay not full screen?
Standard PCM 5.0 activation shows CarPlay in a window next to a PCM side panel. Full-screen CarPlay needs a PCM software flash on top of the activation.
Can Android Auto be activated on a Porsche Macan PCM 5.0?
Yes. On this 2019 Macan S, Android Auto was activated together with Apple CarPlay, with no added hardware.
Is wireless CarPlay possible on a 2019 Porsche Macan?
It depends on the vehicle. Some PCM 5.0 units have the Wi-Fi hardware needed for wireless CarPlay, while others only support wired. Send your VIN and we will check your car.
How long does Porsche CarPlay activation with full-screen take?
About two hours for activation plus the full-screen software flash on a 2019 Macan S.
Is PCM software flashing safe?
Yes, when done correctly. It needs factory software, dealer-level tools and a stable battery voltage throughout. Weiss Auto Concept keeps the engine running during flashing to prevent voltage drops.
